Description

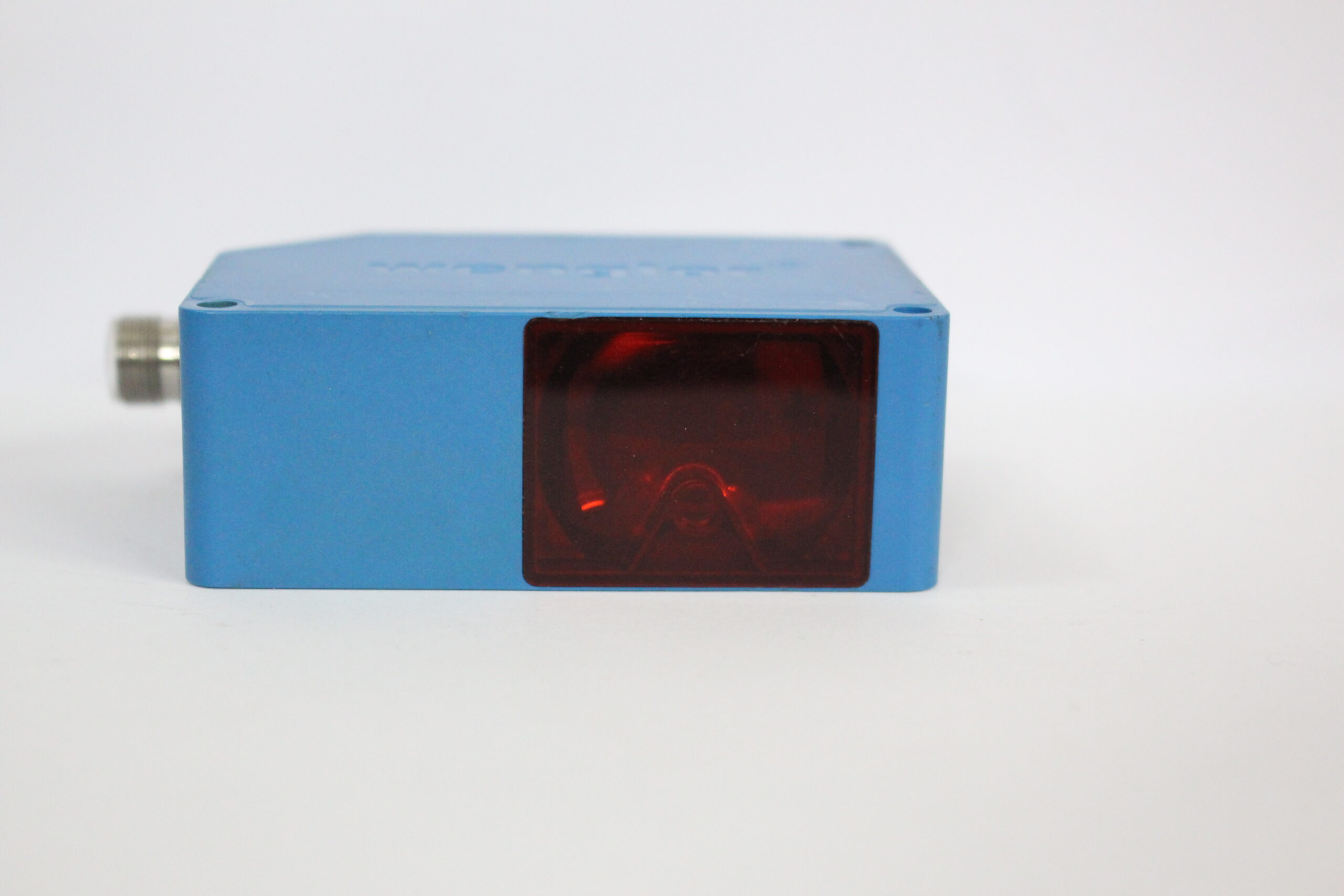

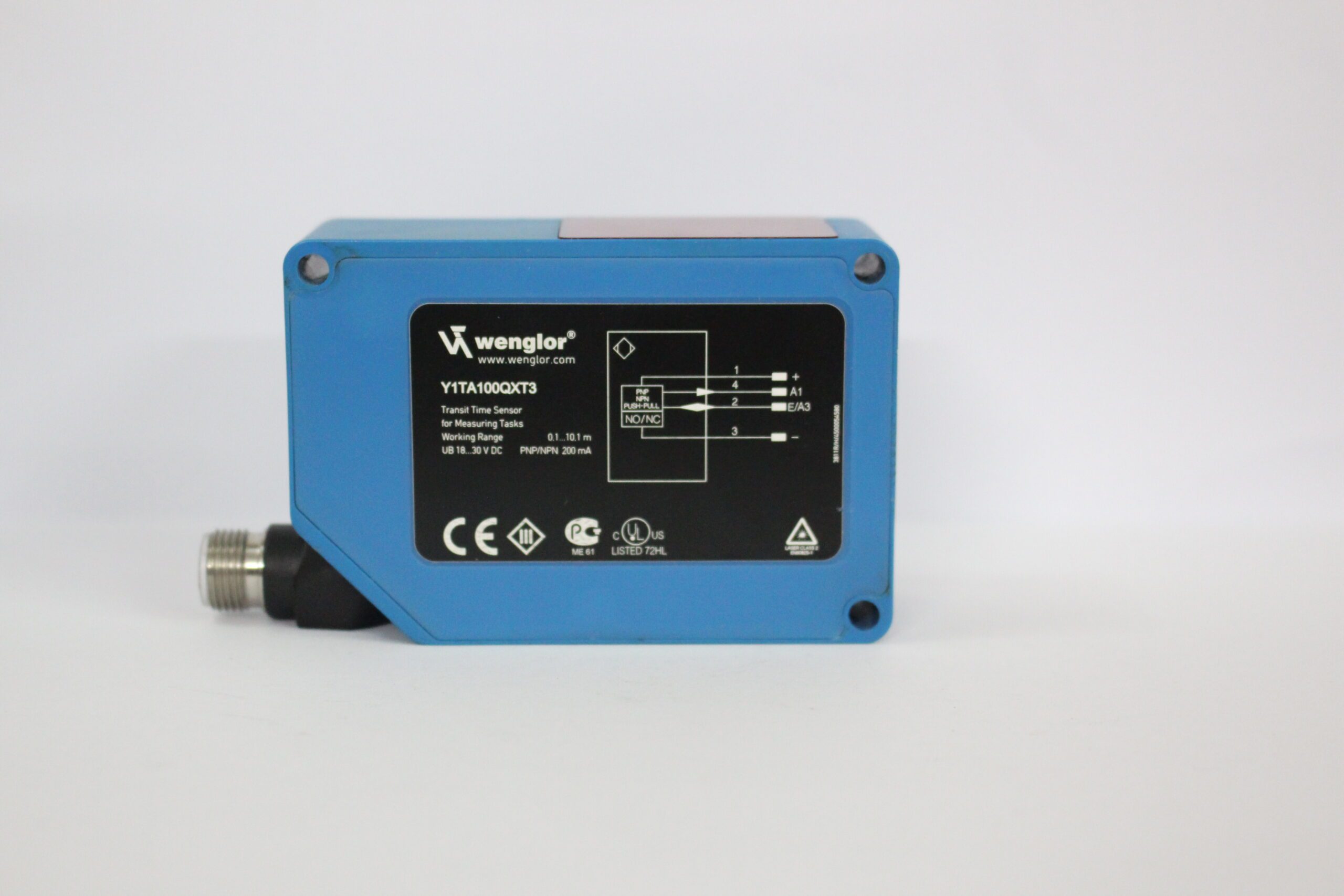

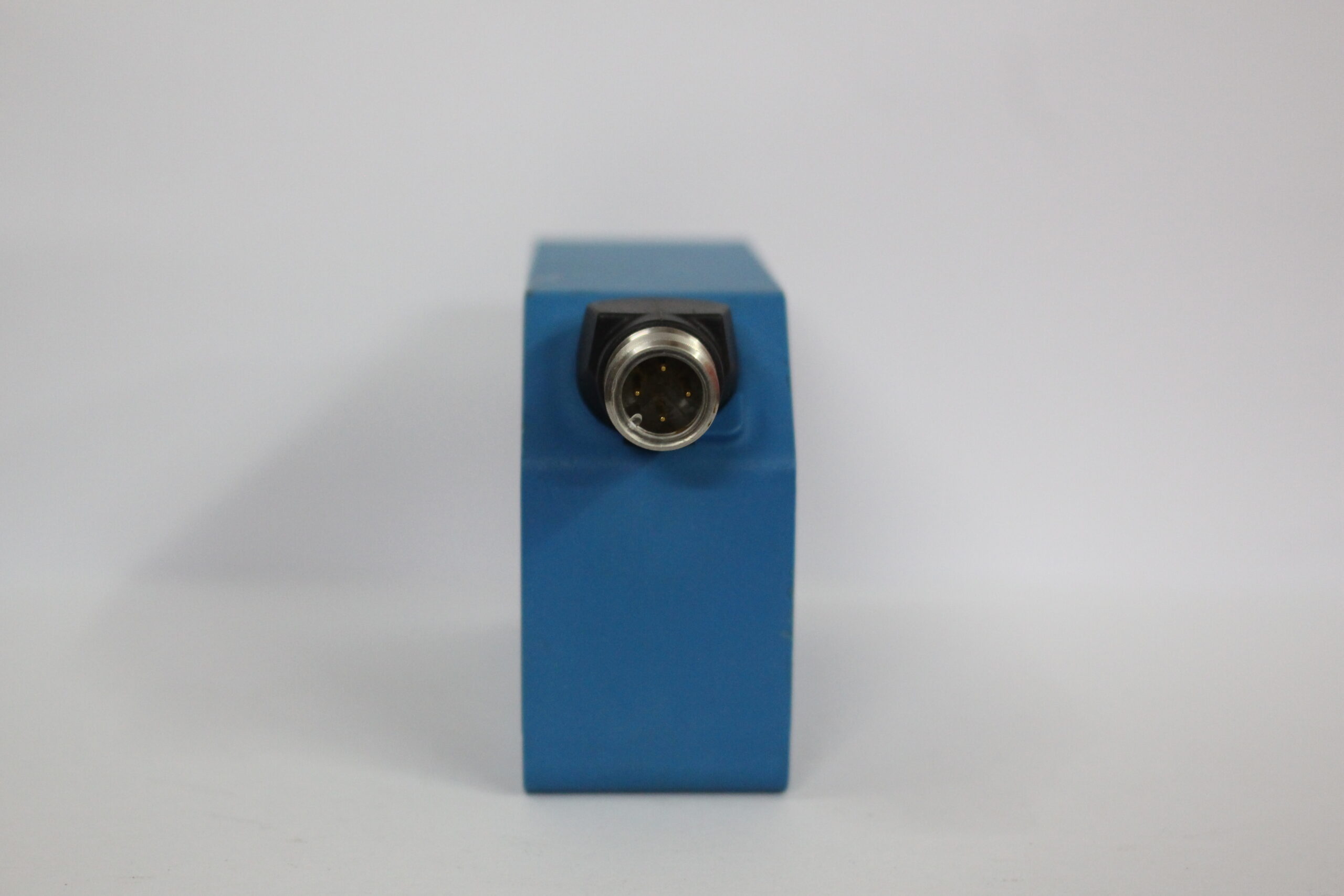

The Y1TA100QXT3 is a laser distance sensor from Wenglor.�It has a working range of 0.1�10.1 meters and a resolution of 1�12 millimeters.�It has a supply voltage of 18�30 VDC and a current consumption of less than 100 mA.�The Y1TA100QXT3 also has the following specifications:�
-
Switching frequency: 50 Hz
-
Measuring rate: 1�100/s
-
Response time: 10�200 ms
-
On-/Off-delay: 0�10,000 ms
-
Temperature drift: Less than 0.2 mm/K for temperatures between -10�C and 50�C
The Y1TA100QXT3 is a time-of-flight sensor with a scanning principle of a push button. It has a PNP/NPN type of switching output and a programmable/configurable type of switch function.�
