Description

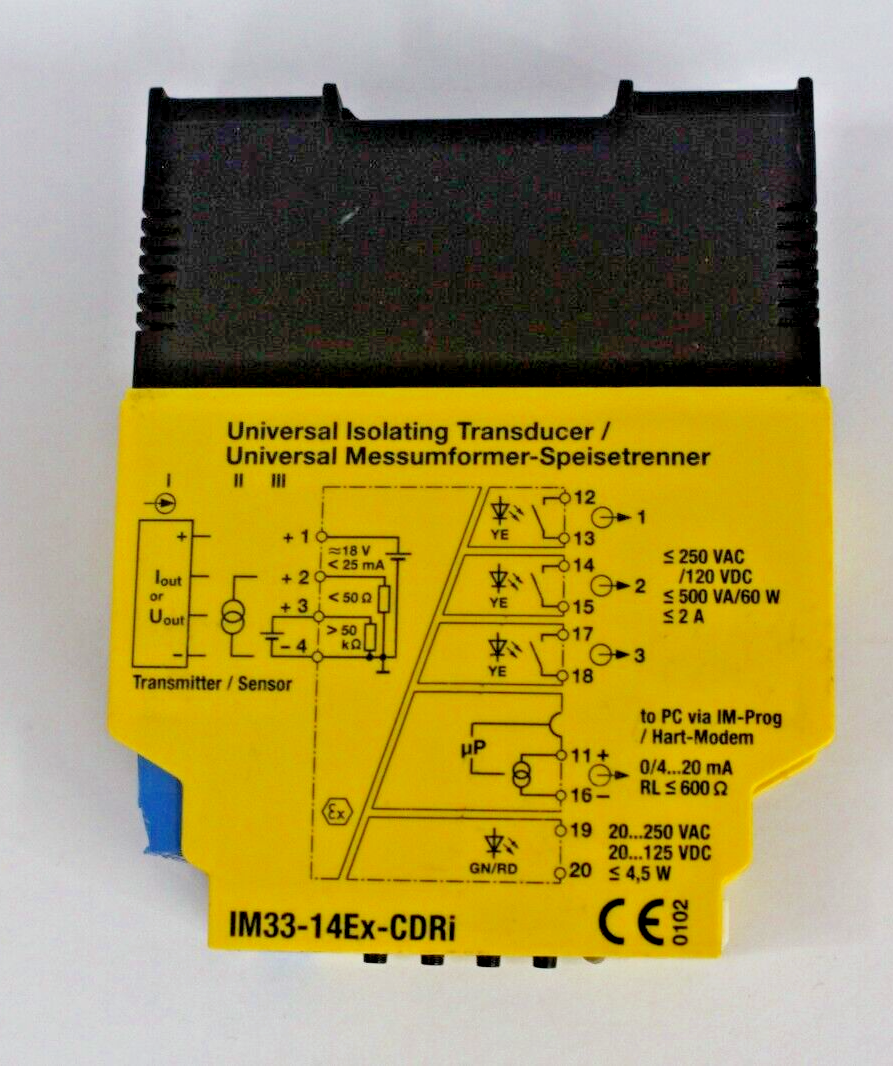

The IM33-14EX-CDRi is a 1-channel isolating transducer from TURCK.�It’s designed to operate intrinsically safe transmitters in the Ex area and transmit measured signals to the non-Ex area.
Here are some features of the IM33-14EX-CDRi:�
-
Monitors analog values and ranges for over and under-range
-
Line monitoring
-
Parameterized via PC (FDT/DTM), front-panel switch, or HART
-
Ring buffer for up to 8,000 measured values
-
Display
-
The power supply of 2 and 3-wire measuring transducers
-
Suited for active and passive signals
The IM33-14EX-CDRi is ATEX-compliant and has the following specifications:�
-
3 x digital outputs (SPST-NO Normally Open rly. contact)
-
1 x analog input (0-20mA / 4-20mA / HART)
-
1 x analog output (0-20mA / 4-20mA)
-
4 x 5-pin removable term.�screw connections
