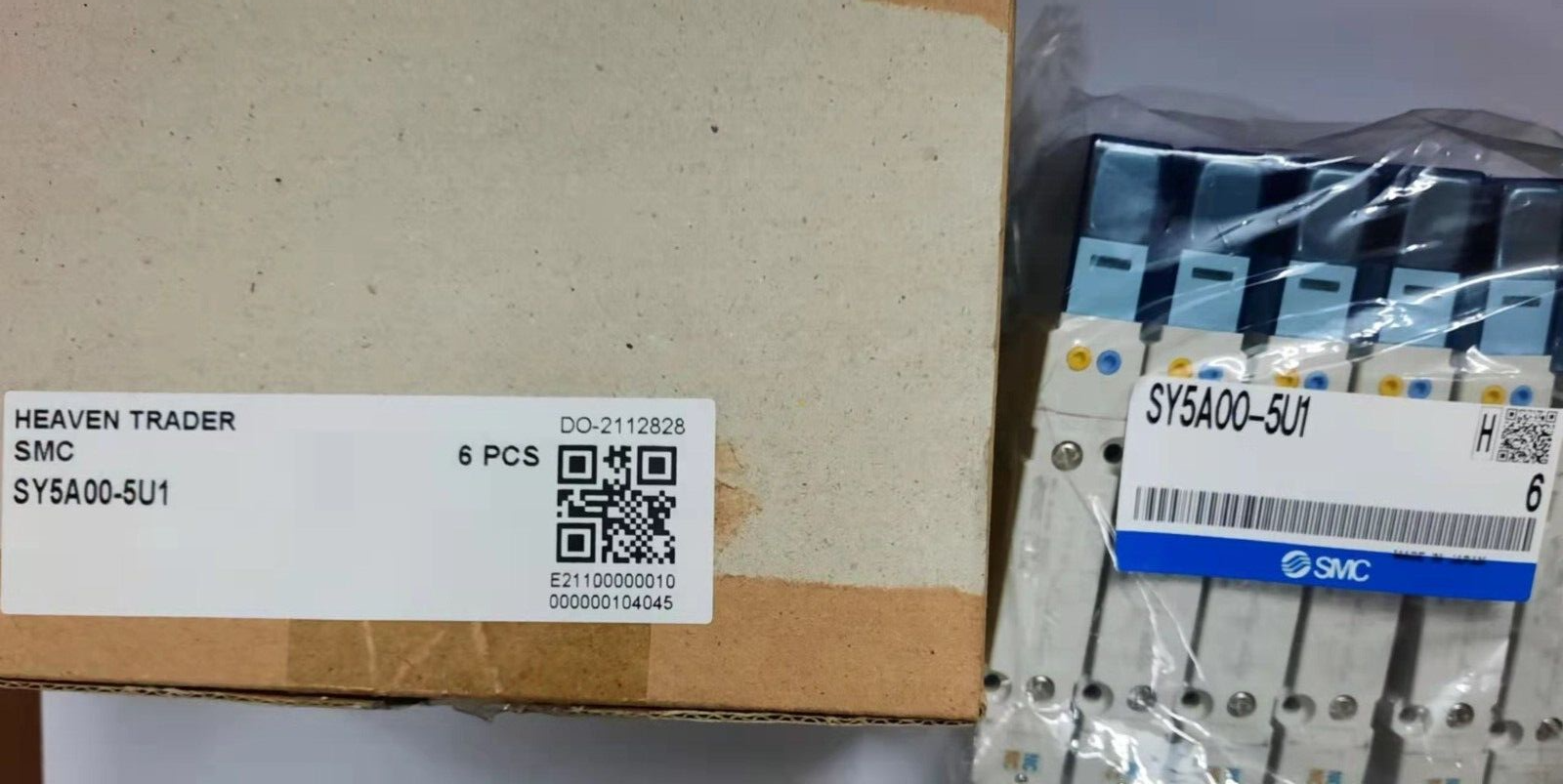

SMC SY5A00-5U1 SOLENOID VALVE

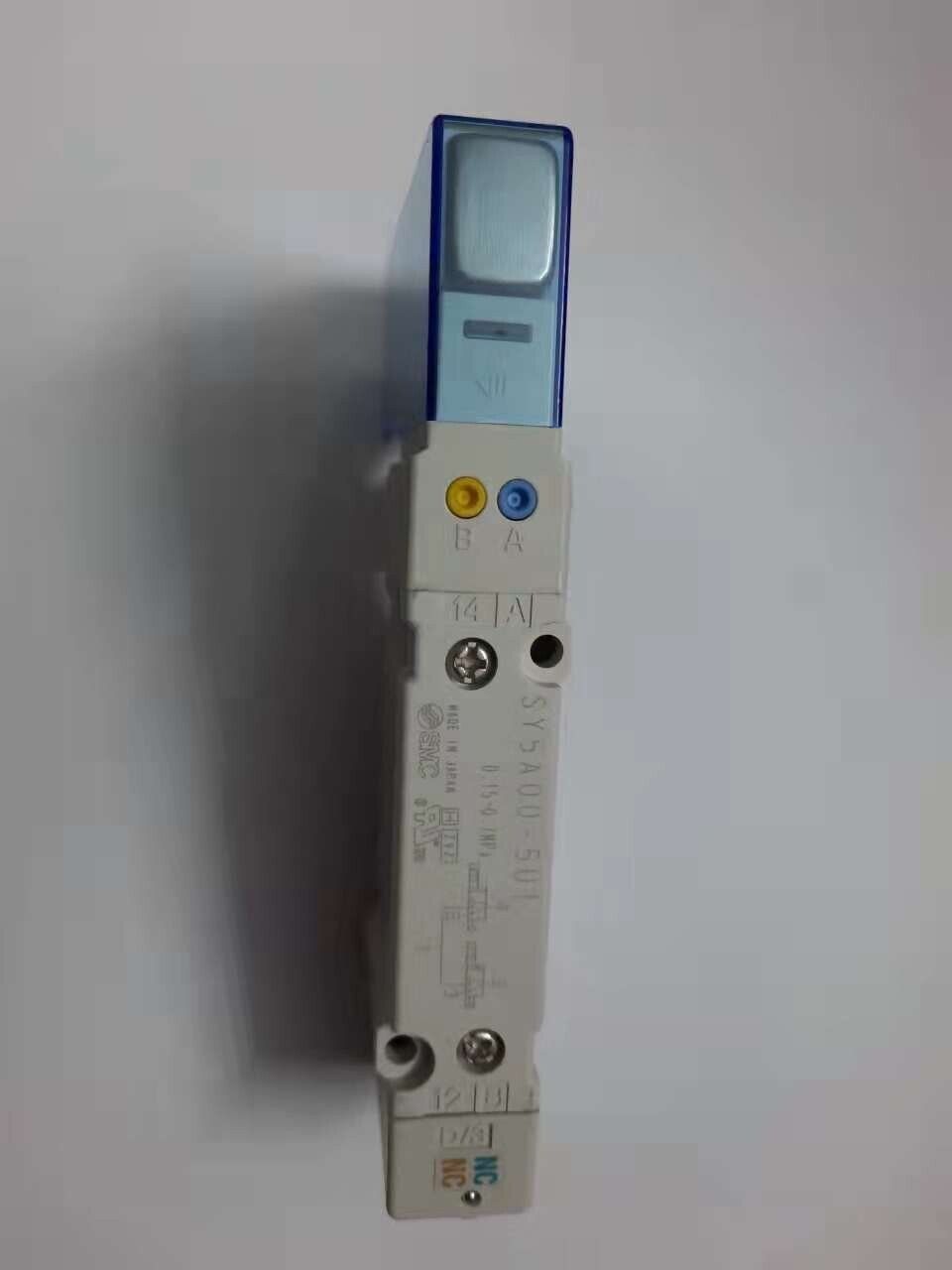

SMC SY5A00-5U1 SOLENOID VALVE - Image 2

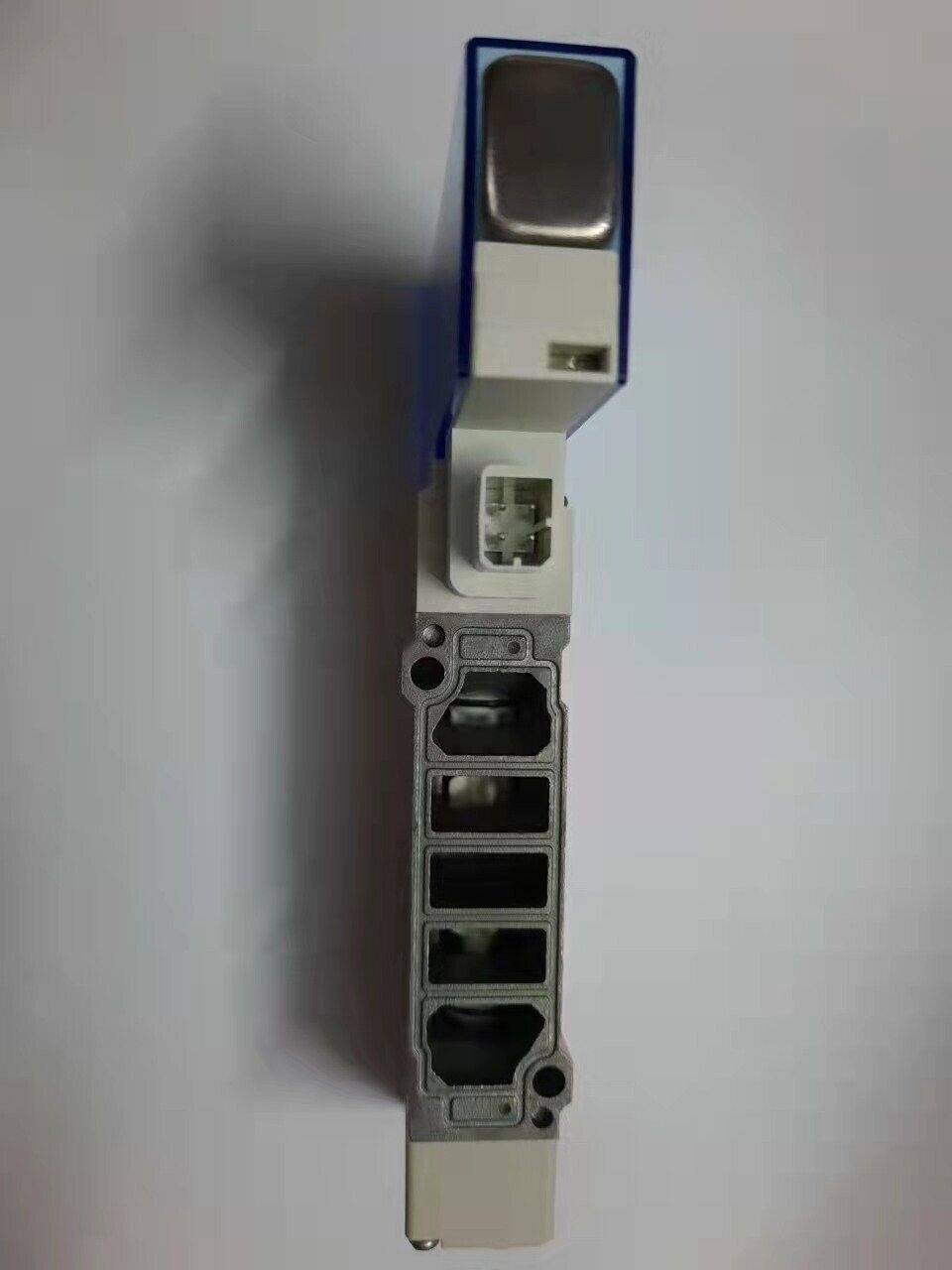

SMC SY5A00-5U1 SOLENOID VALVE - Image 3

SMC SY5A00-5U1 SOLENOID VALVE

AED 500

MODEL NO: SY5A00-5U1

For further inquiries please contact us via:

  • Call / Whatsapp: +971 56 804 7862

  • Email: info@heavenautomation.net

  • Live Chat Agent

  • YOU CAN ALSO BUY FROM OUR EBAY STORE:

EBAY

6 in stock

Category: Tags: , ,

Description

The SMC SY5A00-5U1 is a 5-port, base-mounted, internal pilot, non-locking push solenoid valve.�It has a flow rate of 5.93 CFM and a coil voltage of 5 VDC.�The valve is made of aluminum and is designed for air media.�

Here are some other specifications for the SMC SY5A00-5U1:�

  • Configuration:�4-position dual solenoid 3-port, NC/NC

  • Pressure:�0.15 to 0.7 MPa

  • Flow rate:�1 Cv

  • Number of ways:�3

  • Number of positions:�4

  • Manual override:�Non-locking push type

  • Light/surge suppressor/common specification:�With light/surge voltage suppressor, non-polar

The valve has a built-in strainer in the pilot valve to prevent problems caused by foreign matter.�It also uses H-NBR seal material for the main valve and seals to improve ozone resistance.�The valve has side, top, and bottom port/pipe directions for flexible installation.�
