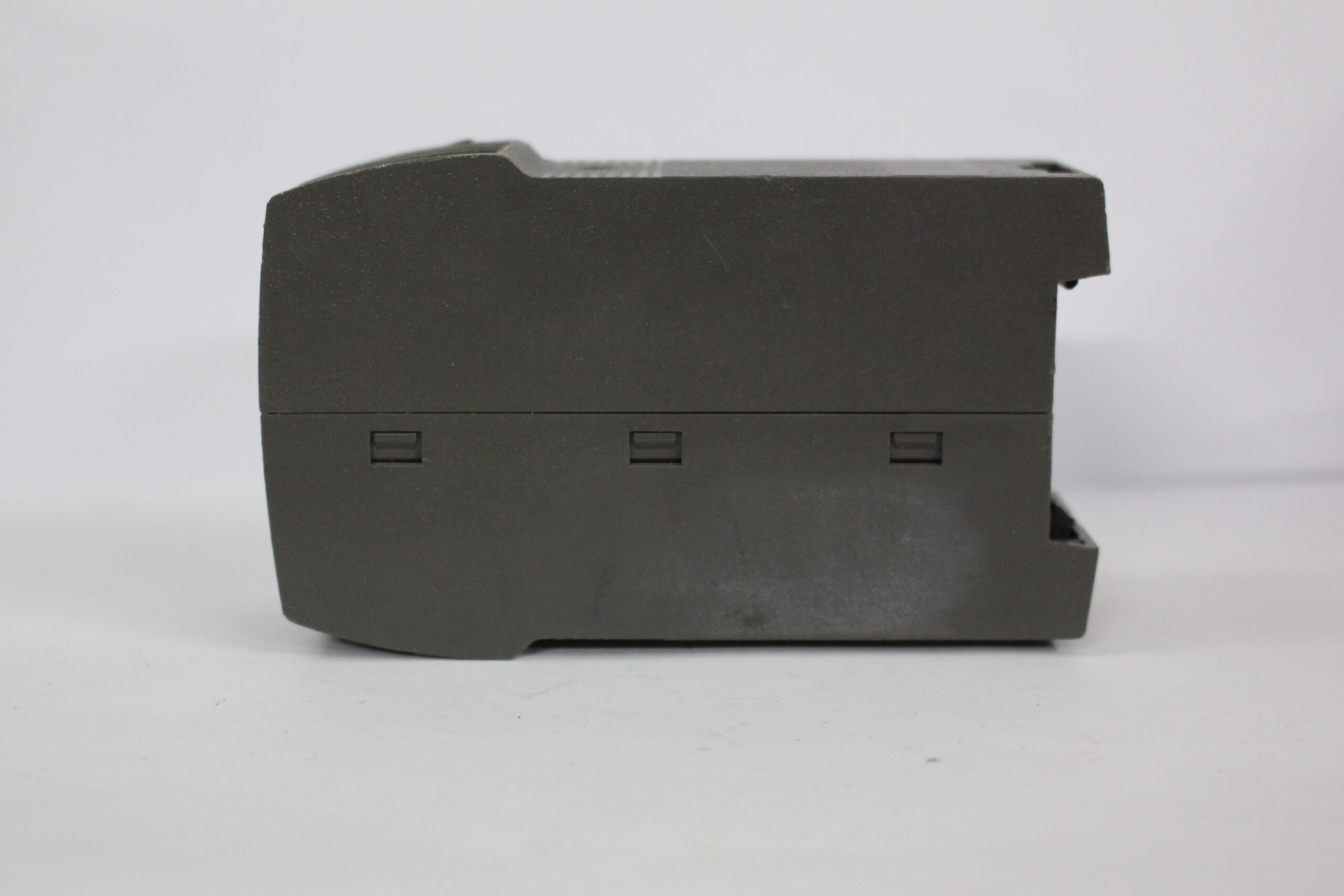

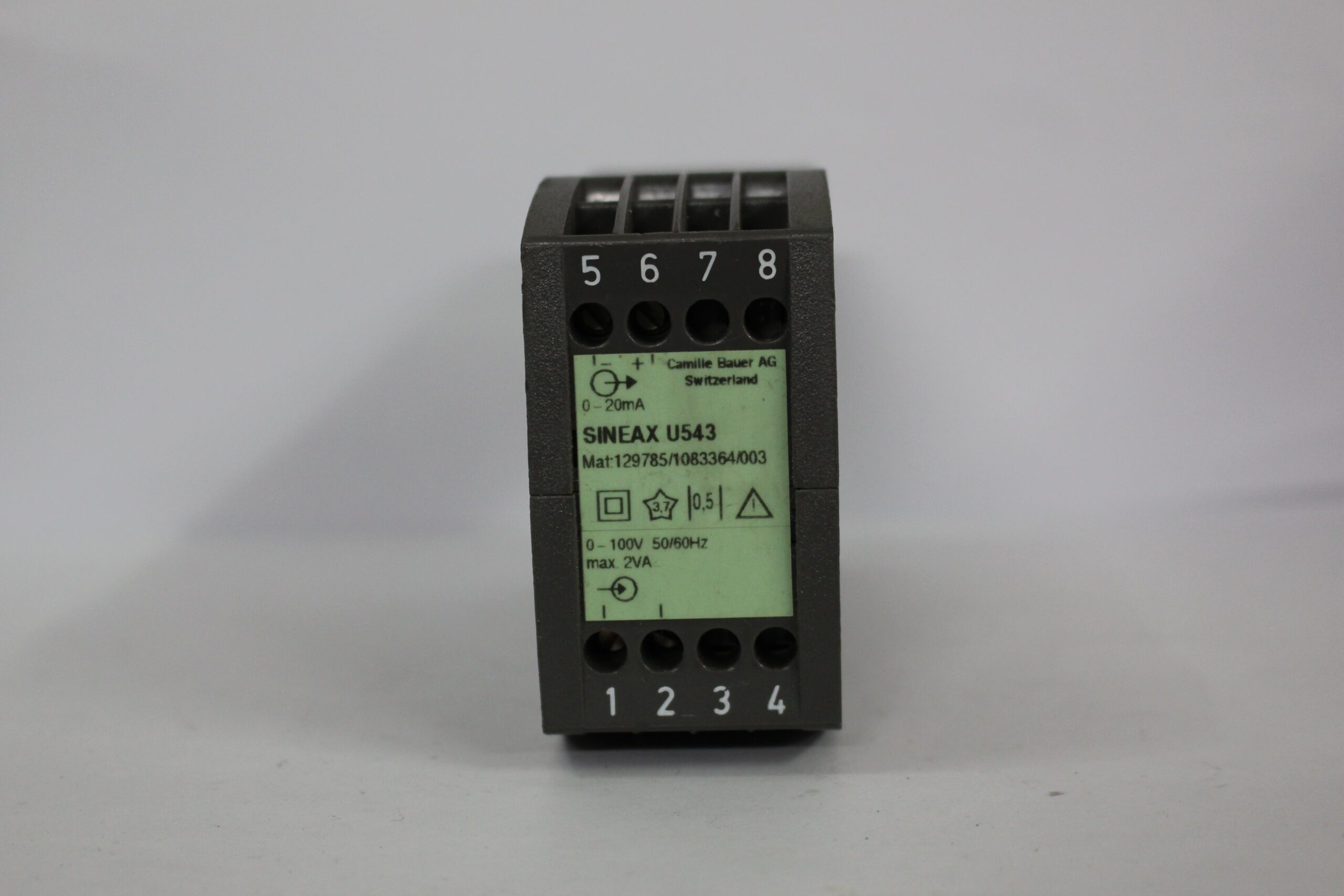

SINEAX VOLTAGE TRANSDUCER U543

The SINEAX U543 is a self-powered AC voltage transducer that converts sinusoidal AC voltage into a DC signal that is proportional to the measured value.�It operates without auxiliary power and complies with electromagnetic compatibility (EMC) and safety regulations.�

• Measurement method:�Rectifier process

• Measurement input:�Alternating voltage, sinusoidal, arithmetic mean value measurement, effective value calibration

• Nominal input voltage:�0…20 to 0…600 V

• Measurement output:�Unipolar

• Output:�0…1, 0…5, 0…10 or 0…20 mA or 0…1 to 0…10 V
