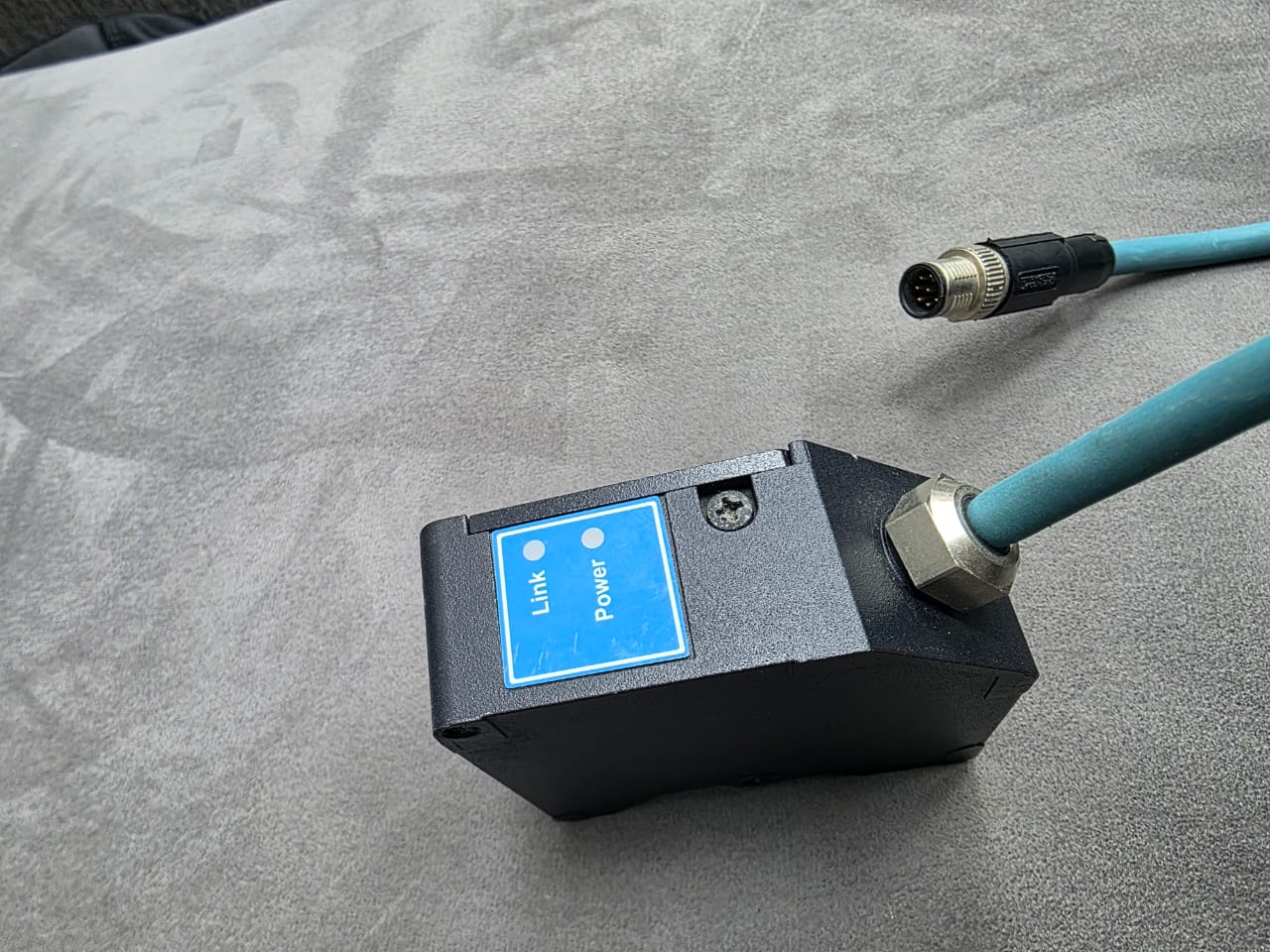

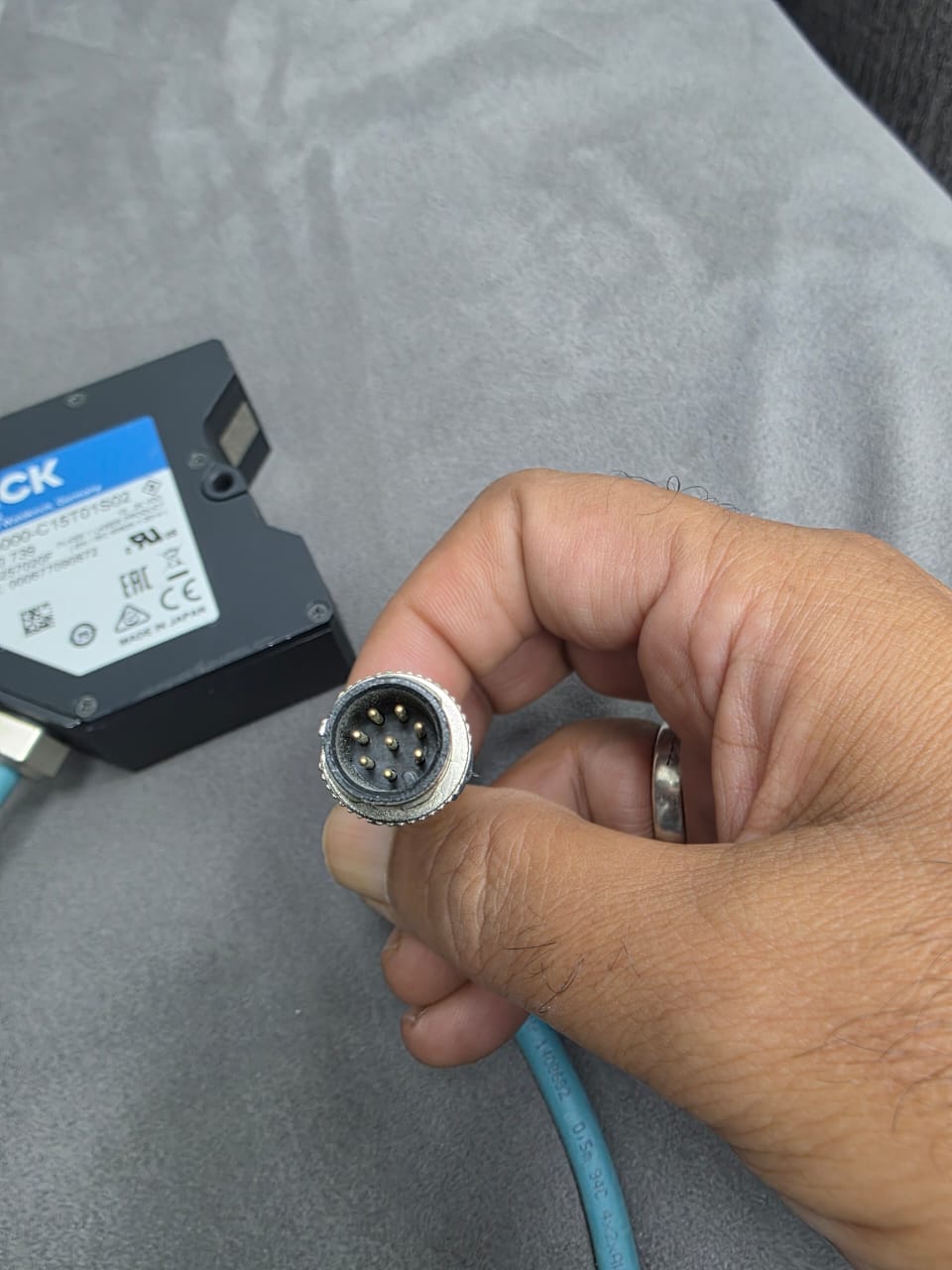

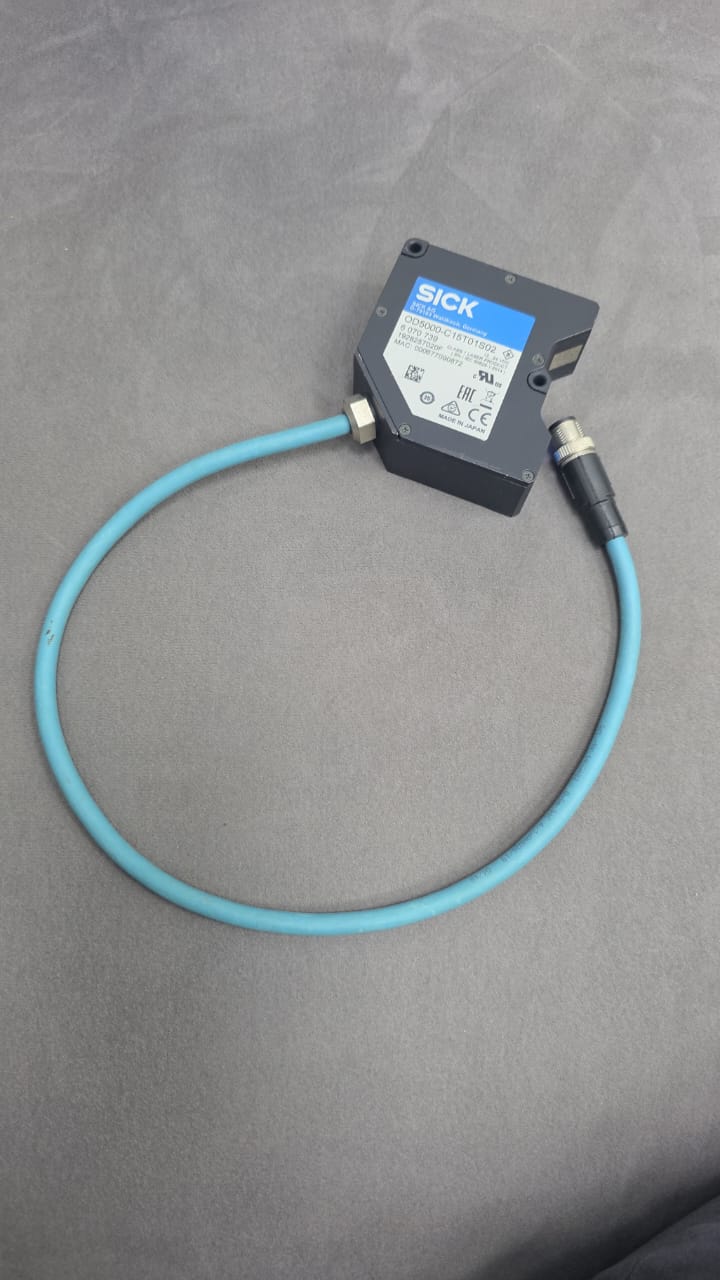

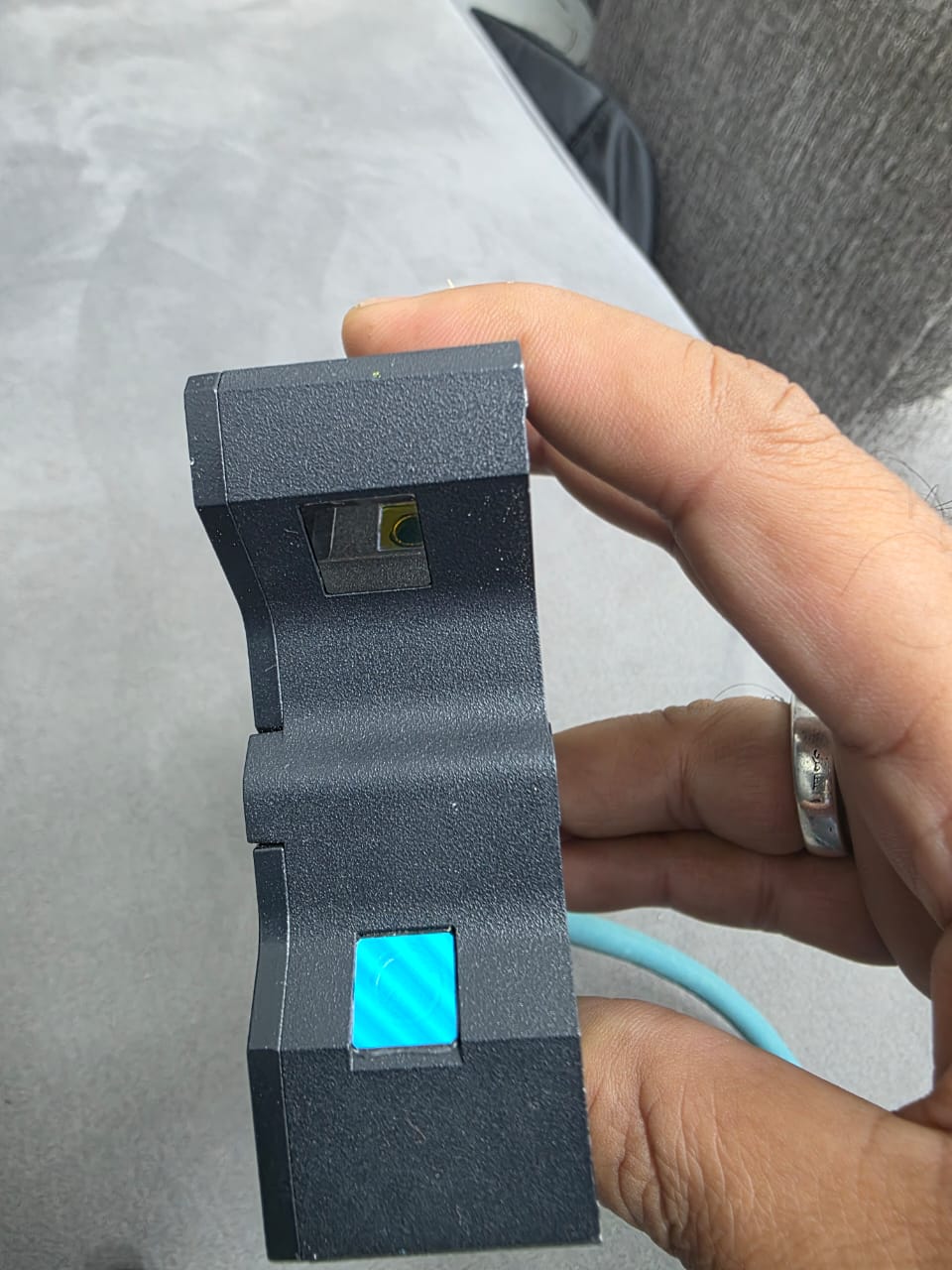

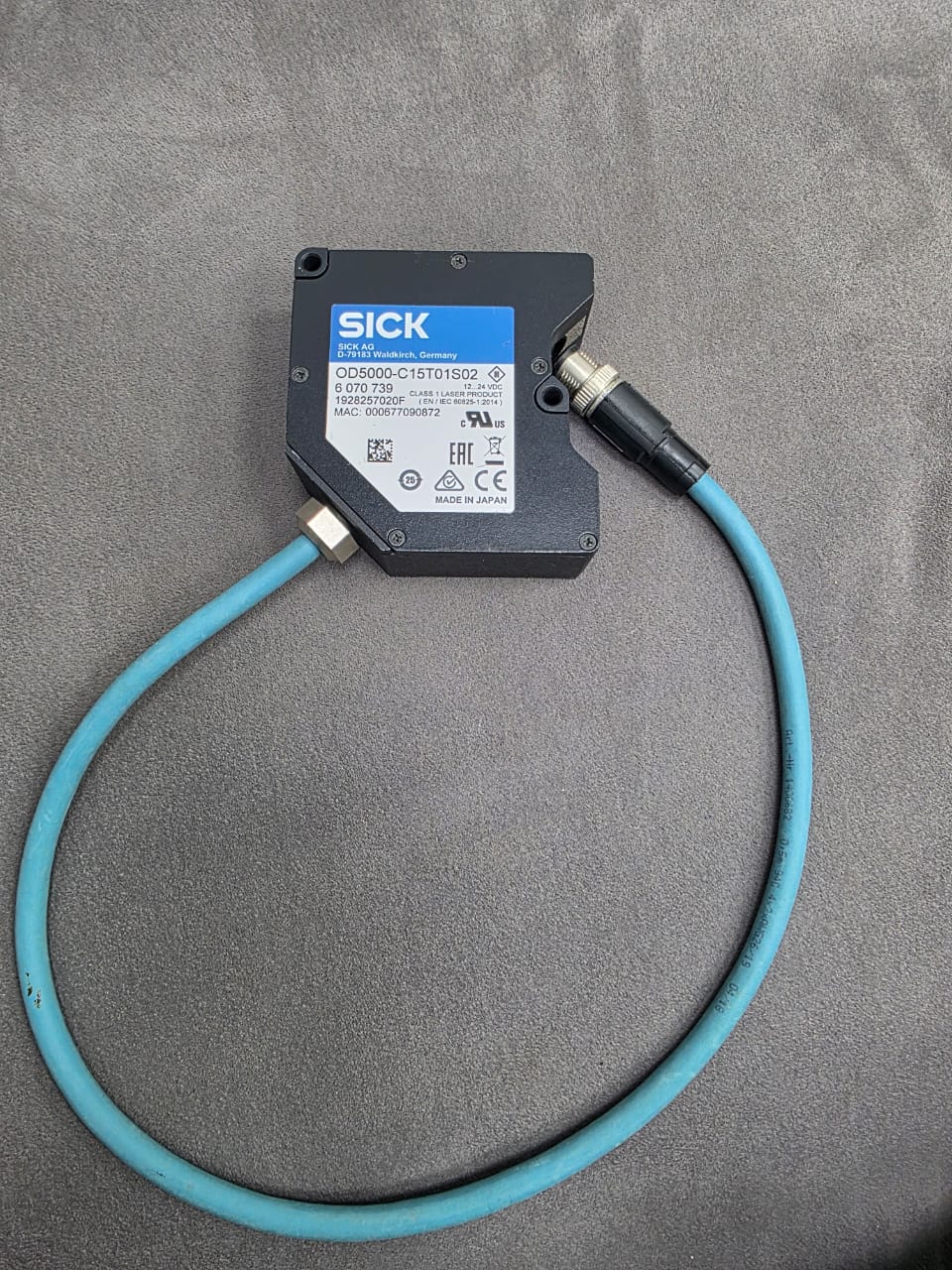

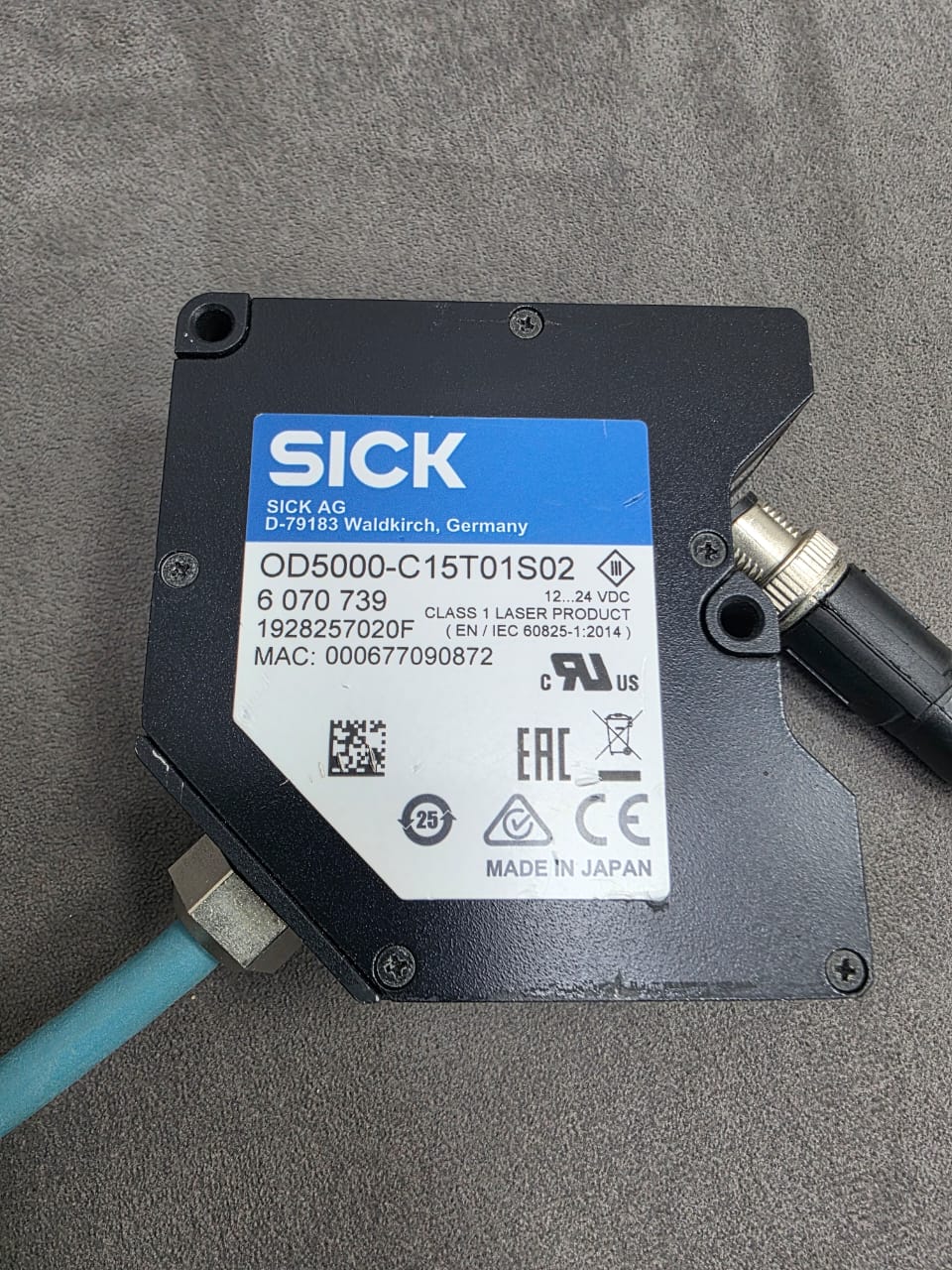

SICK OD5000-C15T01 is a high-precision displacement (laser distance) measurement sensor

Description

• High-precision laser displacement sensor

• Measuring range: 14 mm – 16 mm

• Repeatability: 0.01 µm

• Linearity (accuracy): ±1 µm on specular surfaces (diffuse not supported)

• Laser spot size: Ø 30 µm

• Response time: ≥ 12.5 µs

• Measuring frequency: up to 80 kHz

• Can measure transparent material thickness (~0.06 – 0.18 mm)

• Power supply: 12 – 24 V DC, consumption ~180 mA
