Description

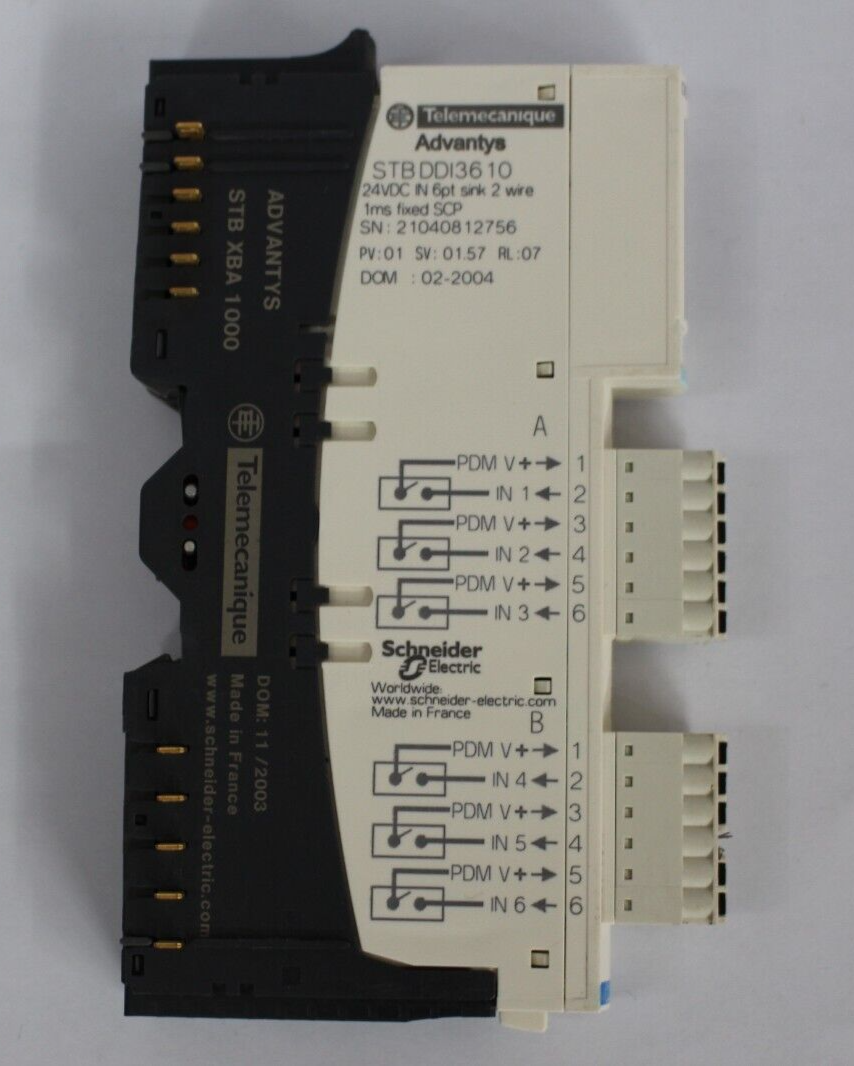

The Schneider Electric STB DDI 3610 is a standard digital input module that is compatible with most major fieldbus networks. It is a digital input module for Modicon STB with 6 inputs, sinks 2 wire1 ms fixed SCP, and 24 VDC.
Here are some more details about the Schneider Electric STB DDI 3610:�
-
Rated supply voltage:�24V DC
-
Current consumption:�55mA at 5V DC for logic bus
-
Dimensions:�125mm (width) x 65.1mm (depth) x 18.4mm (height)
-
Weight:�0.112kg
-
IP degree of protection:�IP20 conforming to EN 61131-2 class 1
-
Operating altitude:�<= 6561.68 ft (2000 m)
-
Ambient air temperature for operation:�-13�
The STB DDI 3610 is suitable for packaging, bottling, assembly, distribution, textile, printing, and semiconductor machines applications.�
