Description

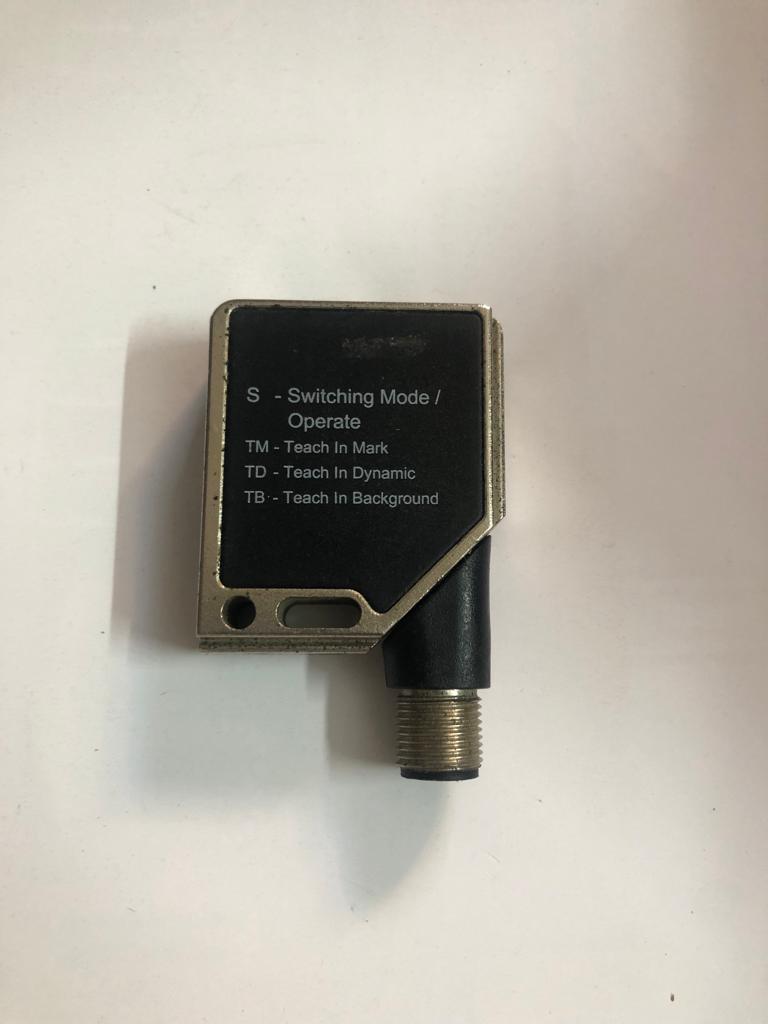

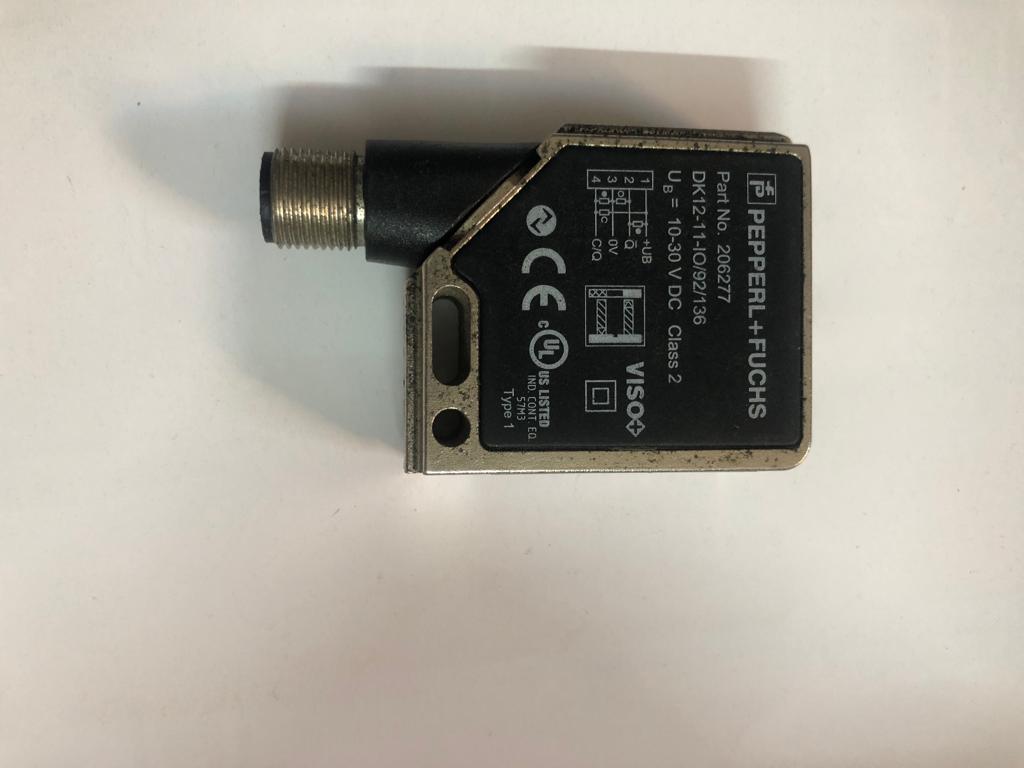

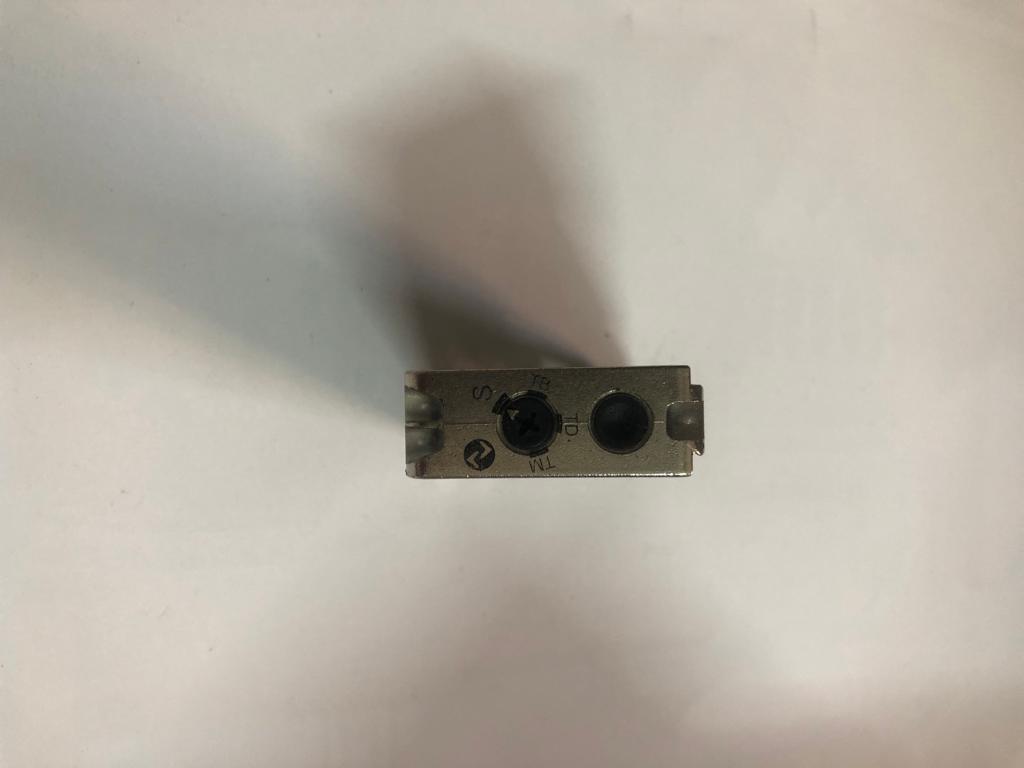

The DK12-11-IO/92/136 is a print mark contrast sensor from Pepperl+Fuchs.It has the following features:�
-
IO-Link interface:�For service and process data
-
Diffuse mode sensor:�For recording any print mark
-
TEACH-IN:�Static and dynamic
-
Response time:�40 �s, suitable for extremely rapid scanning processes
-
Emitter colors:�Green, red, and blue
-
Supply voltage:�10-30Vdc / (DC) 18-30Vac
-
Sensing distance:�9-13mm
-
Material:�PC (housing) / Plastic pane (optical)
The DK12-11-IO/92/136 is also a photoelectric contrast sensor.�It has a sensor range of 11 mm +/- 2mm, 3X LED (R/G/B), LIGHT/DARK ON, 10-30 VDC, 0.1 AMP, 4-PIN M12 CONNECTOR, IP67.�
