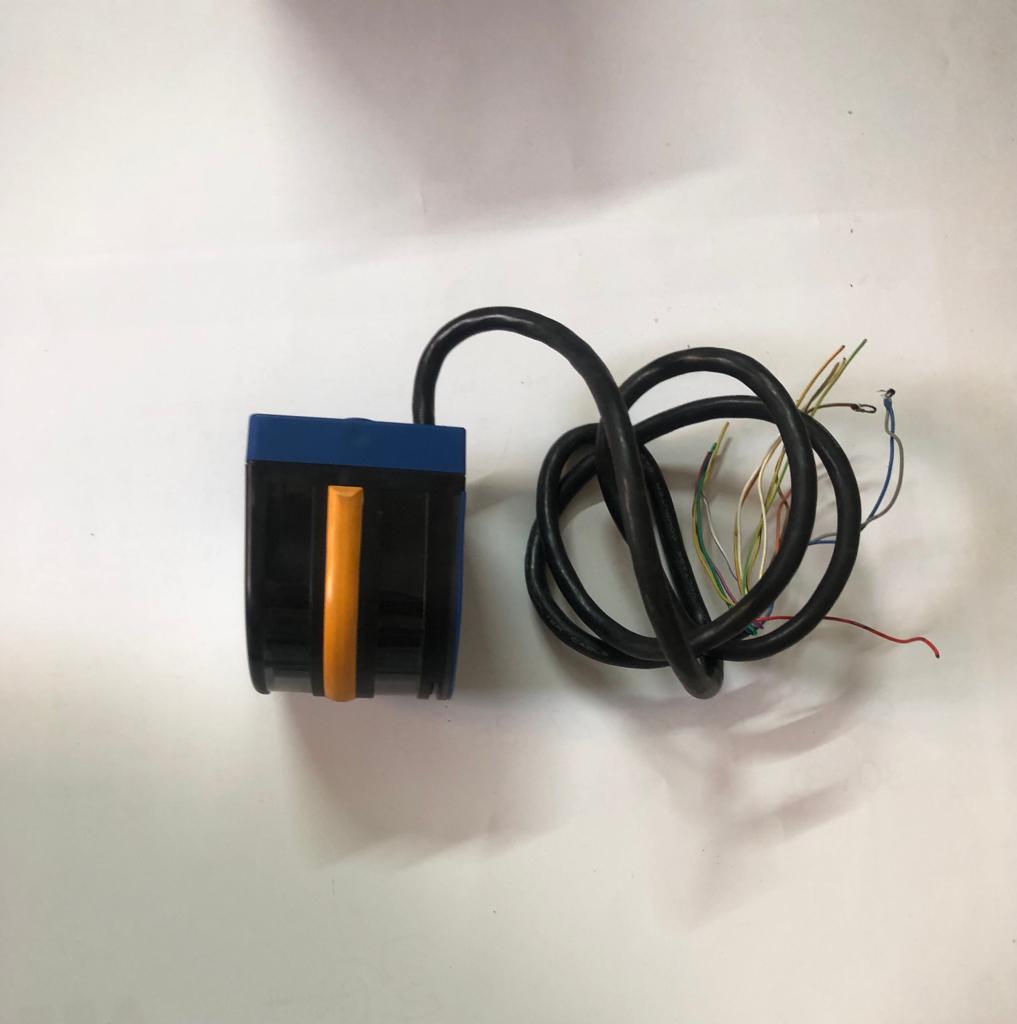

HOKUYO SCANNING RANGEFINDER PBS-03JN

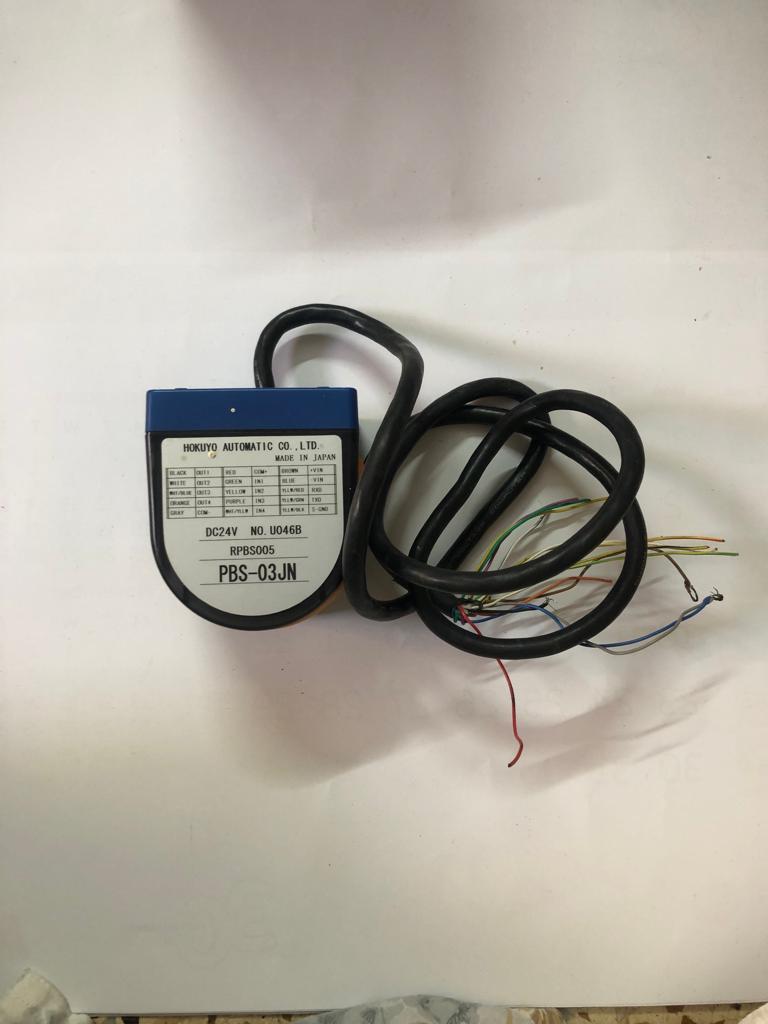

HOKUYO SCANNING RANGEFINDER PBS-03JN - Image 2

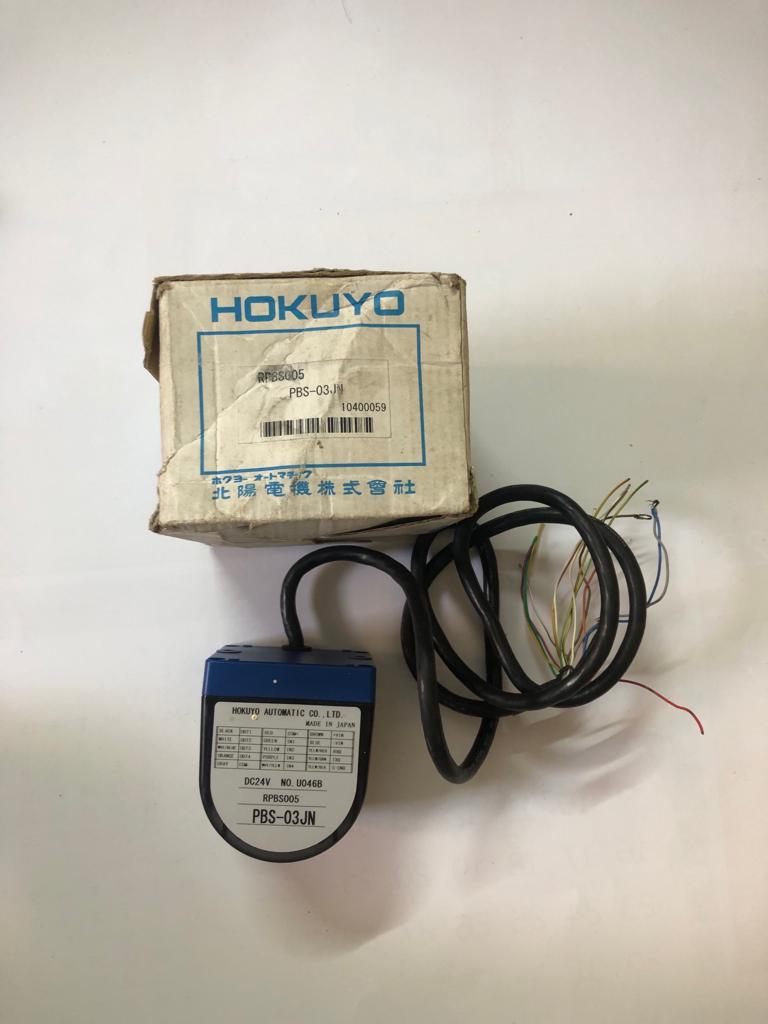

HOKUYO SCANNING RANGEFINDER PBS-03JN - Image 3

HOKUYO SCANNING RANGEFINDER PBS-03JN

AED 506

MODEL NO: PBS-03JN

For further inquiries please contact us via:

  • Call / Whatsapp: +971 56 804 7862

  • Email: info@heavenautomation.net

  • Live Chat Agent

20 in stock

Category: Tags: , ,

Description

The PBS-03JN is an�obstacle detection sensor that scans the path of Automated Material Handling Systems (AMHS) to protect equipment from impact.�It is a cost-effective alternative to laser range-finders in indoor environments.�

Here are some other details about the PBS-03JN:�

  • Detectable range:�200 mm to 3000 mm

  • Scanning range:�178.2� area scanning range with 1.8� angular resolution

  • Operating voltage:�24 V

  • Weight:�500 g

  • Size:�75 x 70 x 70 mm

  • Scan window/angle:�100�

  • Field of view:�100�

  • Technology:�Infra-red LED

The PBS-03JN operates by scanning a semicircular field with an LED and calculating the coordinates by measuring the distance to the object and its step angle.�It then detects obstacles in the set area.�The detection area can be set by PC (RS-232C).�
