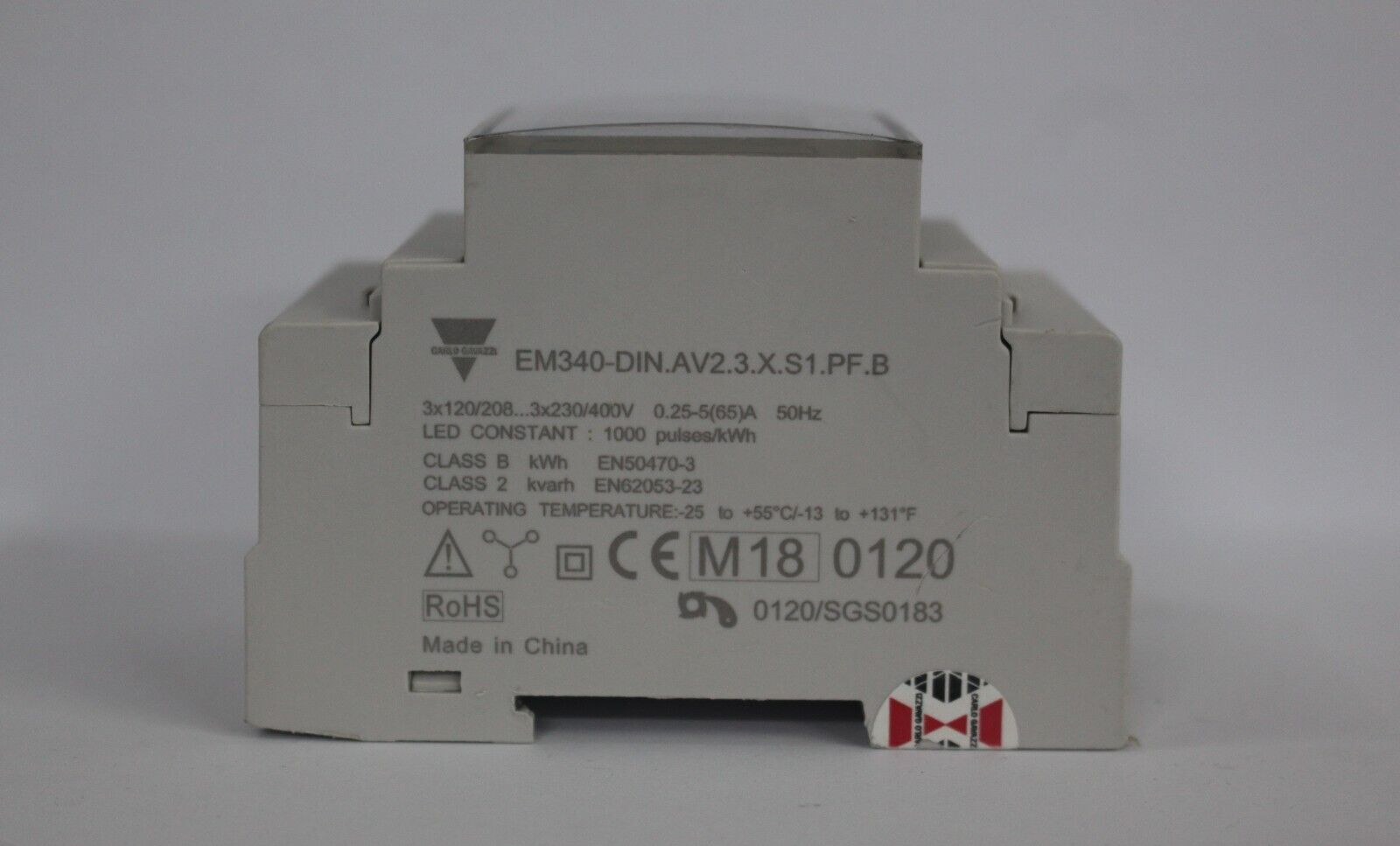

CARLO GAVAZZI EM340-DIN.AV2.3.X.S1.PF.B ENERGY METER

Description

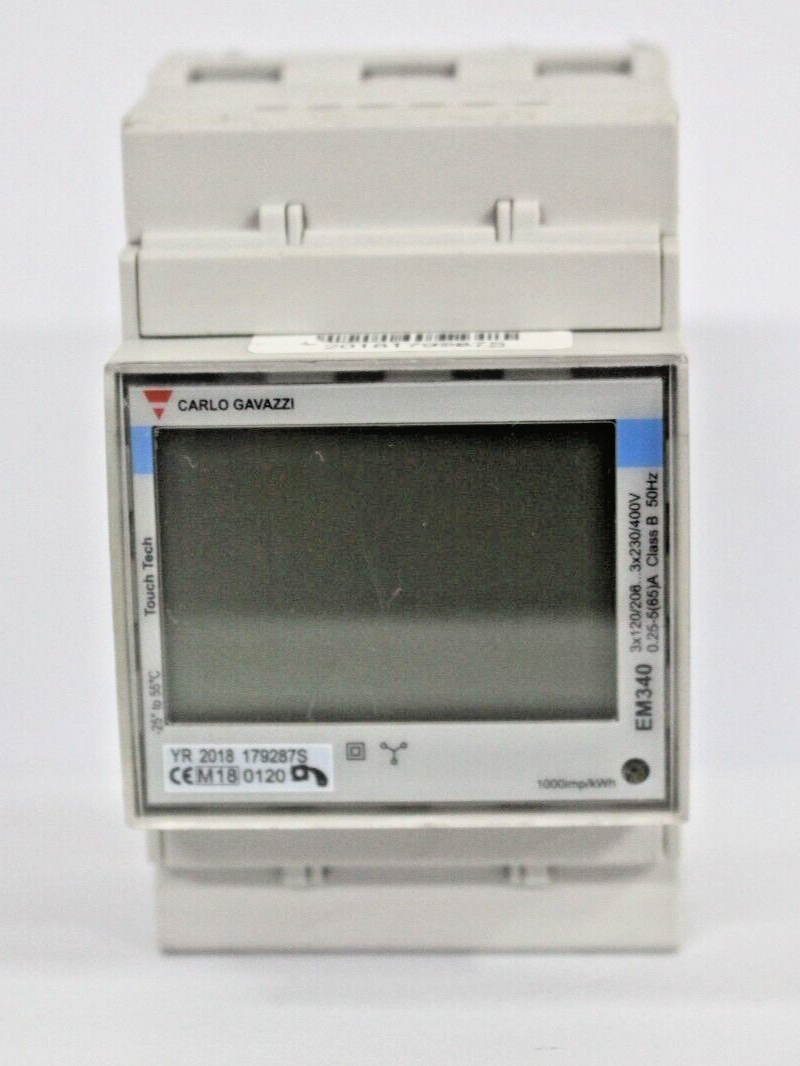

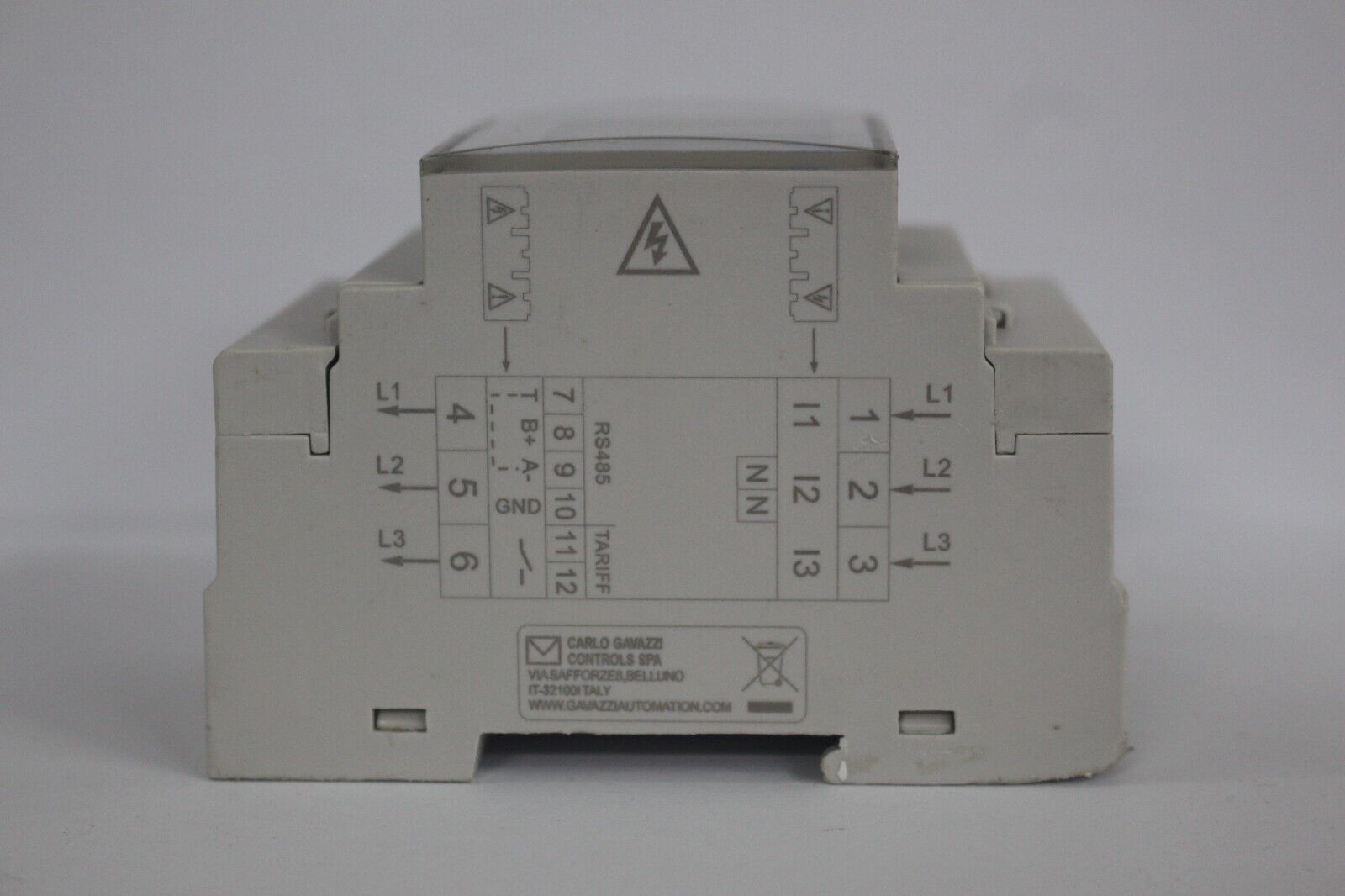

Three-phase energy meter with backlit LCD with integrated touch keypad. Particularly indicated for active energy metering and cost allocation in MID applications up to 65 A (direct connection), with dual tariff management availability. It can measure imported and exported energy or be programmed to consider only Certified according to MID Directive, Annex �B� + Annex �D� or Annex �B� + Annex �F� for legally imported ones. Housing for DIN-rail mounting, with IP51 front-degree protection. The meter is optionally provided with pulse output proportional to the active energy being measured, RS485 Modbus port or M-bus port. Available for legal metrology (PF option, only for imported energy).
