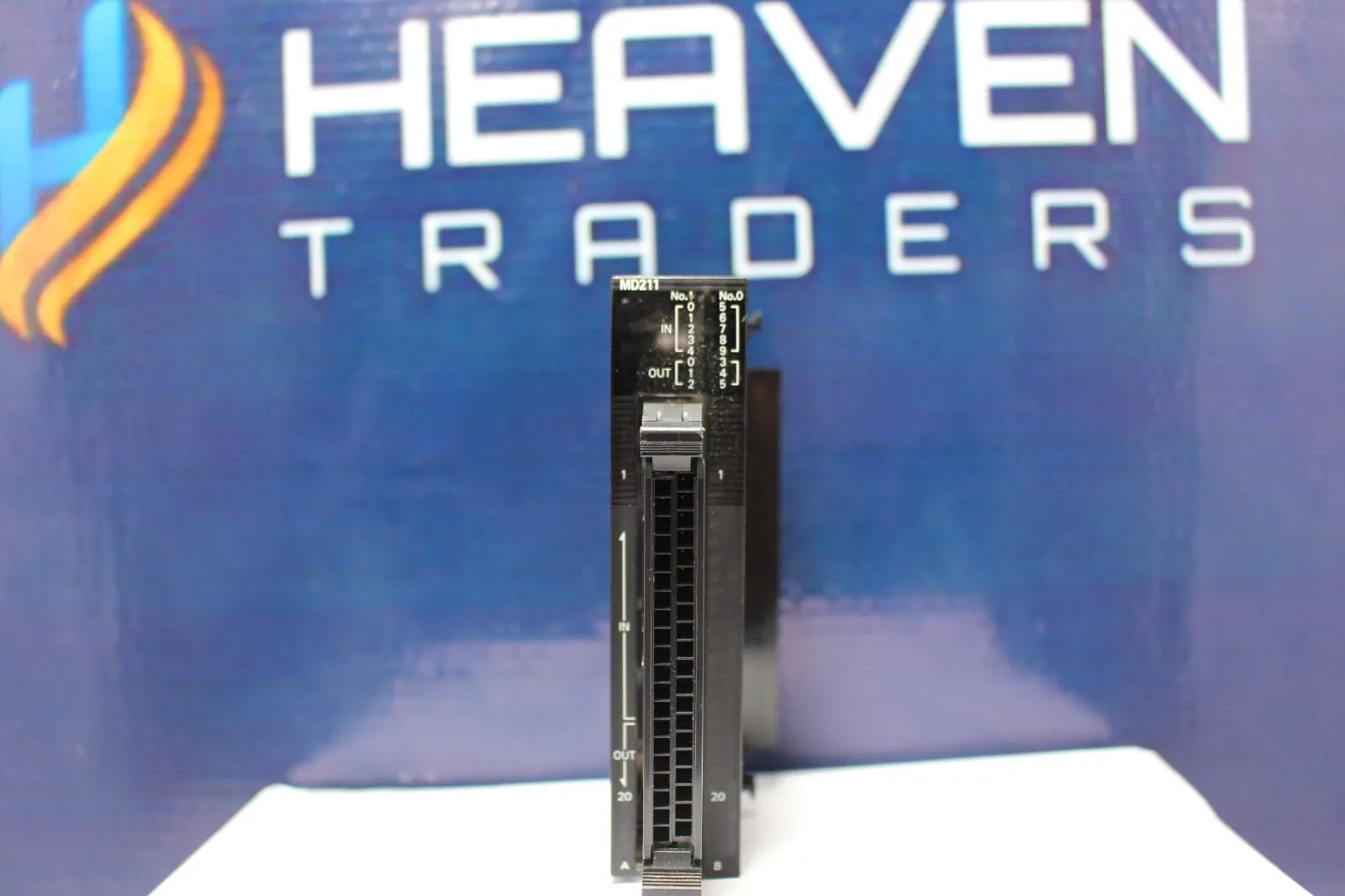

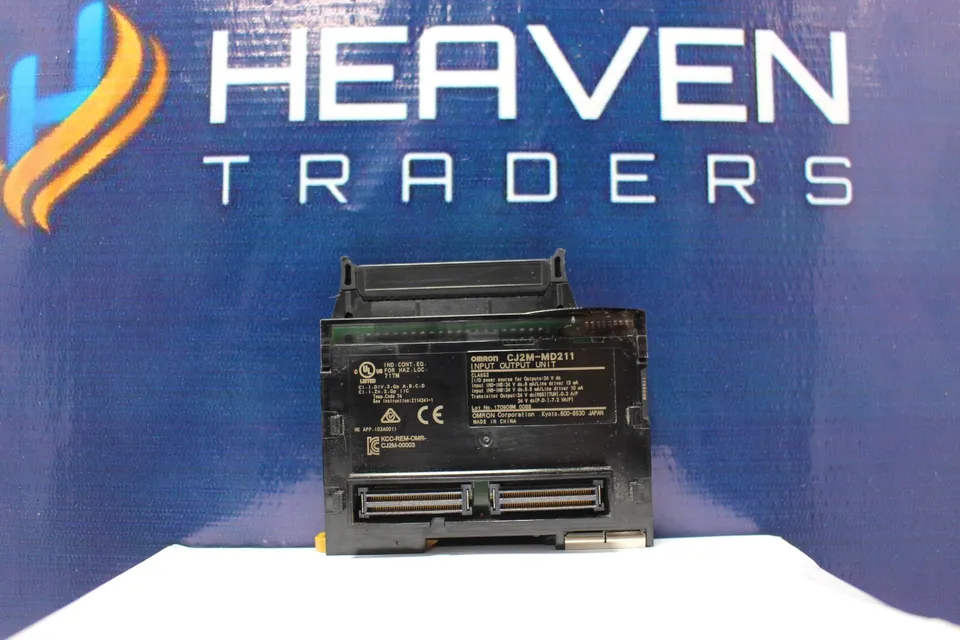

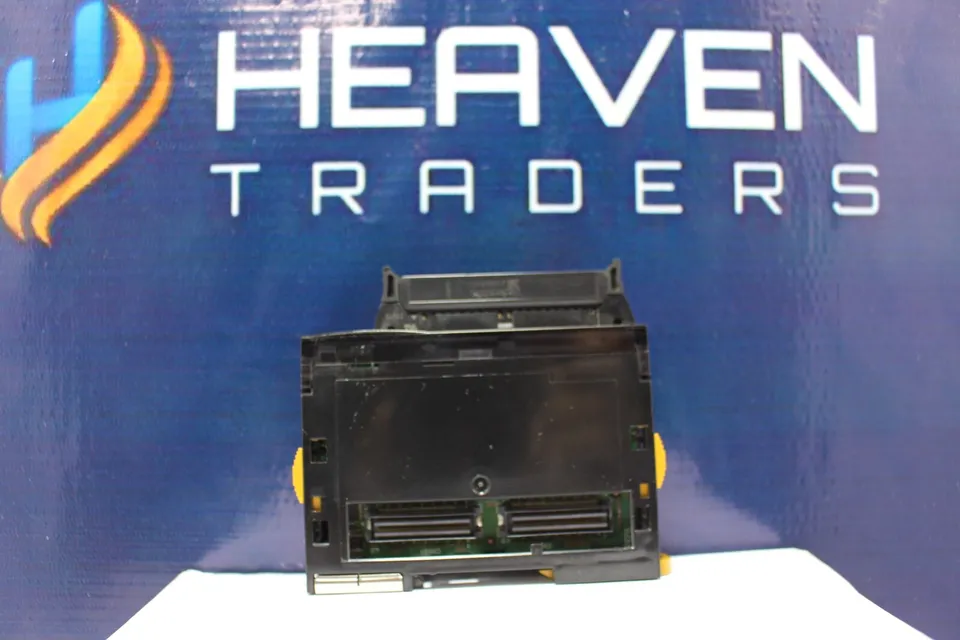

OMRON CJ2M-MD211 CPU Module

The CJ2M-MD211 is an I/O unit from OMRON. It is a pulse output module for the SYSMAC CJ2M series. The module has the following specifications:

• I/O system: CJ CPU Bus
• Expansion unit type: CPU Pulse I/O Unit
• Type of module: Positioning
• Digital input type: Incremental encoder, Interrupt, NPN, Voltage pulse
• Digital output type: NPN, PWM, Voltage pulse
• Number of encoder input channels: 2
• Number of pulse output channels: 6 Max
• Digital inputs: 10 x digital inputs (24Vdc; including 4 x interrupt/quick response + 2 x high-speed counter inputs)
• Digital outputs: 6 x digital outputs (24Vdc; Sink; including 2 x pulse outputs + 2 x PWM outputs)
• Current consumption: (5Vdc) 0.08 A
